Custom Aluminum Connector Plate | CNC Machined Audio Panel with Enamel Printing
Discover how a pro audio brand achieved high-precision aluminum connector plates with CNC machining, ±0.15mm tolerance, and durable enamel printing.
Primary Keyword Custom Aluminum Connector Plate
Secondary Keywords CNC machined aluminum panel audio connector plate enamel printed metal plate
2. Project Quick Facts
| Specification |
Details |
| Product Type |
Audio Connector Plate |
| Material |
Aluminum 5052 / 6061 |
| Thickness |
2.0mm |
| Size |
150 × 65 mm |
| Process |
CNC Machining + Laser Cutting |
| Surface Finish |
Matte Black Anodized |
| Printing |
White Enamel Printing |
| Tolerance |
±0.15mm |
| Lead Time |
3–5 Days Sample, 20 Days Mass |
3. Full Case Study
3.1 Project Background & Challenge
The client, a European professional audio equipment brand, required a high-precision connector plate for speaker back panels. The plate integrates multiple mounting holes and connector interfaces, demanding strict dimensional accuracy and durability.
Three key challenges were identified:
1. High-density hole precision
Multiple holes with strict spacing (70mm symmetrical layout) required exact alignment.
2. Premium surface & branding
Matte black metal finish with high-contrast, wear-resistant markings.
3. Industrial durability
Scratch-resistant, corrosion-resistant, and long-lasting under heavy usage.
3.2 Engineering Solution
Phase 1: Material Optimization
We selected 5052/6061 aluminum alloy for its lightweight, machinability, and anodizing compatibility.
Phase 2: CNC Precision Machining
Using CNC drilling and laser cutting, all holes and contours were processed with ±0.15mm tolerance.

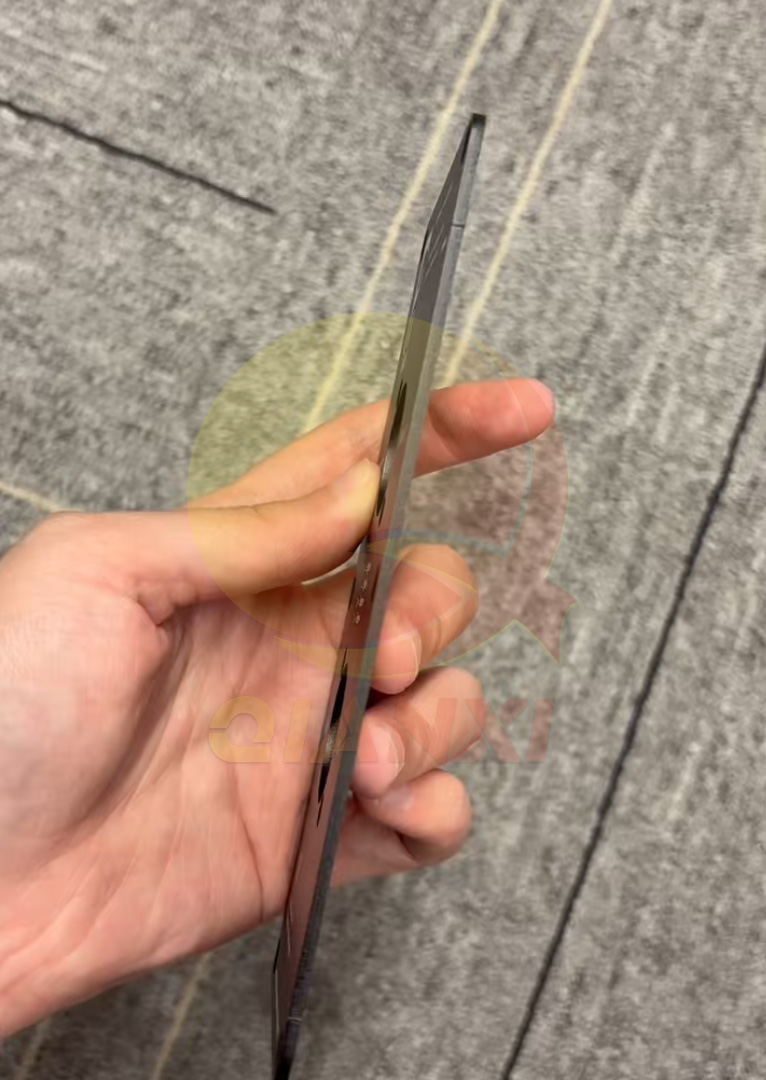

Phase 3: Surface Finishing
Sandblasting + anodizing created a matte black, anti-scratch, anti-fingerprint finish.

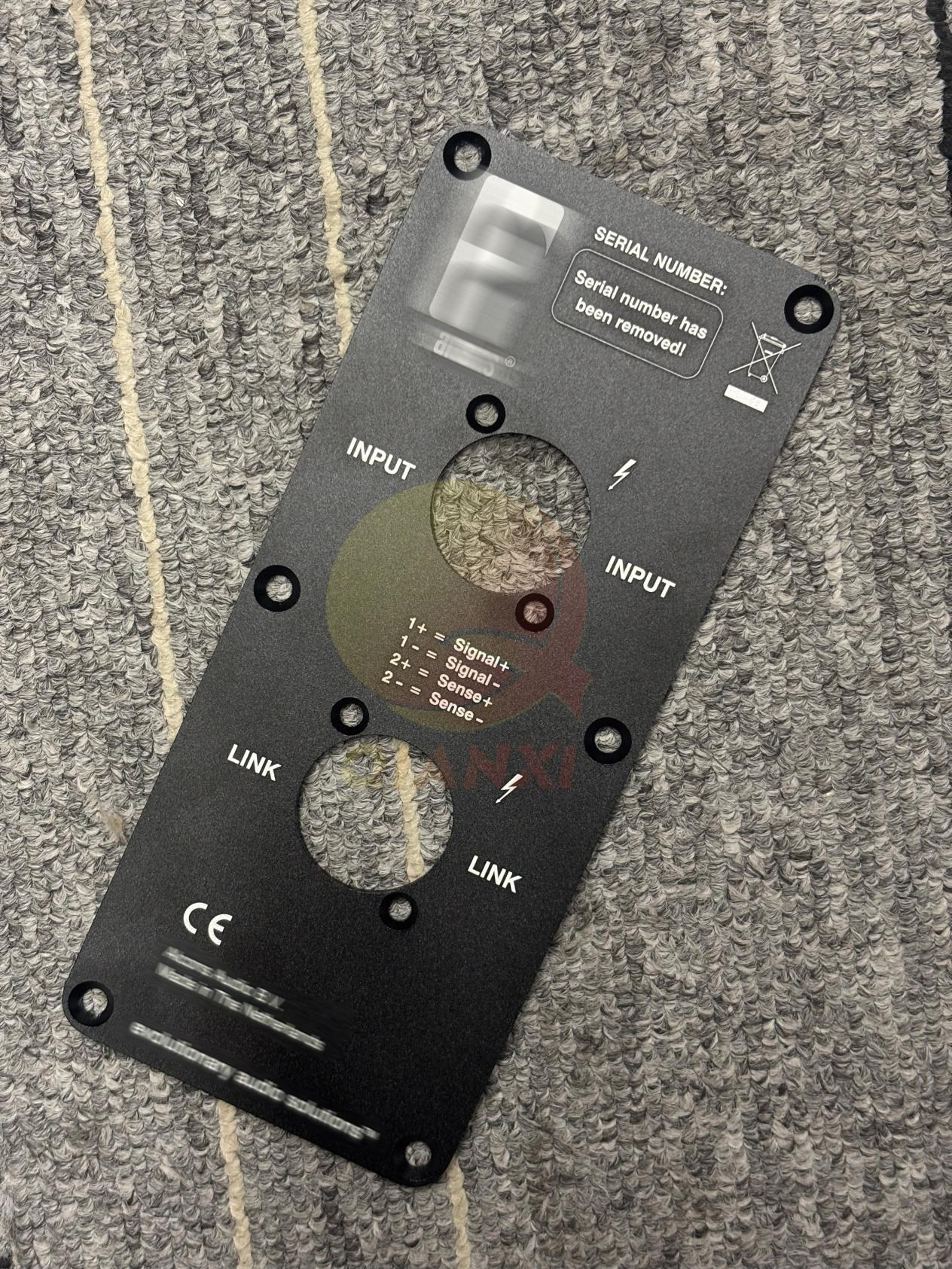

Phase 4: Enamel Printing
High-adhesion enamel ink was applied and thermally cured for durability.
3.3 Results & Performance
· Sample completed in 3 days
· Mass production finished in 20 days
· Precision tolerance: ±0.15mm
3.4 Client Feedback
“The connector plates exceeded our expectations in precision and finish. All connectors fit perfectly, and the printed details remain sharp after repeated use.”
4. FAQ
Q1: What material is best for connector plates?
A: Aluminum (5052/6061) is ideal for its lightweight and machinability.
Q2: How do you ensure hole accuracy?
A: CNC machining ensures tolerance within ±0.15mm.
Q3: Is enamel printing durable?
A: Yes, with thermal curing, it resists wear and fading.
5. Conclusion
This project demonstrates our capability in delivering high-precision, durable, and visually premium aluminum connector plates for industrial applications.
